STARFIRE S-4XXL SWEEPER TRUCK

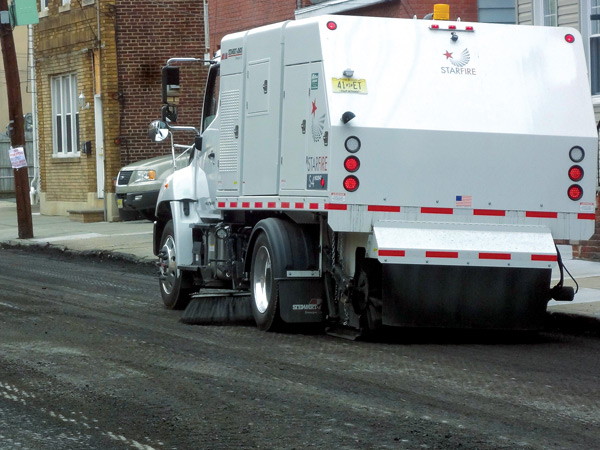

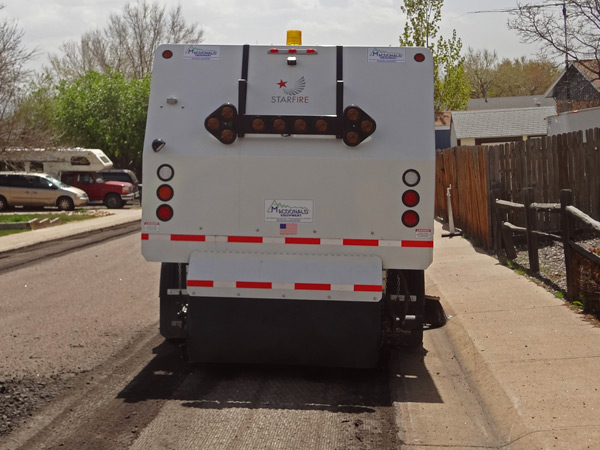

The S-4XXL is an extra heavy duty, full-featured dual engine mechanical broom street sweeper now available with a robust 4.5 yd3 hopper. The S-4XXL is mounted on a large conventional chassis that does not require a CDL to operate. Manufactured with reliability and simplicity in mind, the S-4XXL is built for day-in and day-out continuous duty sweeping – from chip seal & millings, to heavy spring clean-up to mile after mile of open highway. The S-4XXL has a GVWR of 33,000 lbs. and does require a CDL.
The environmentally conscious S-4XXL is SCAQMD PM-10 Rule 1186 Certified.
All Starfire models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.
Key Performance, Productivity & Safety Features
Off-set hydraulic elevator drive motor is protected against impacts.
Case drains for all the hydraulic motors protect shaft seals from pressure leaks minimizing repairs & replacements.
Vertically-mounted control panel is 6-way adjustable for easy & ergonomic viewing. One-touch sweeping allows for operator to preset functions. Brooms raise automatically in reverse.
Electrical relays & fuses are protected from the elements in a sealed NEMA 4 enclosure. The wiring is heat stamped with numbers for easy identification.

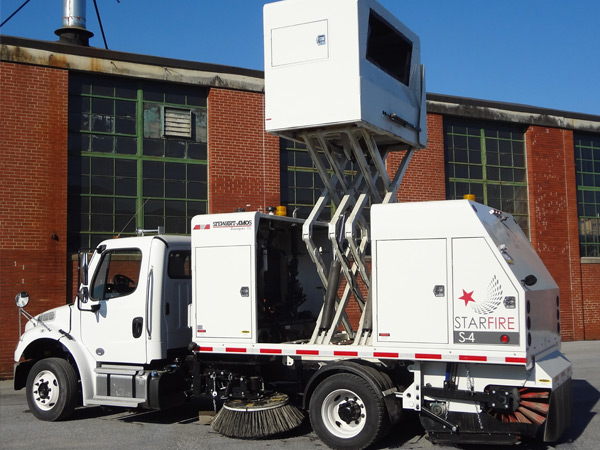

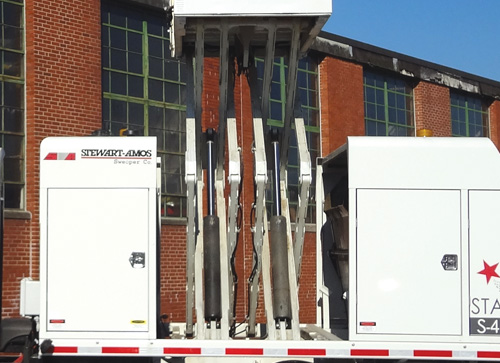

Massive “X” style lift scissors & 4-corner hopper lift ensure exceptional hopper stability when dumping wet, unbalanced, or sticky debris.
Variable dump height hopper (up to 12′ high) with 44” extra-long dump door easily reaches most dump trucks.
Main broom channeler (optional) effectively sweeps large quantities or bulky & light debris (leaves/pine straw). Self-adjusting as main broom wears.
330 gallon polyethylene water tank with 3.6 gpm diaphragm pump & elevator wash-down system come standard. Spray nozzles: 2 per curb broom, 4 on main broom & 4 on front spray bar.
One-piece all steel main frame consists of HD tube, C-channel, and thick plates. This structure allows for rugged & reliable durability.

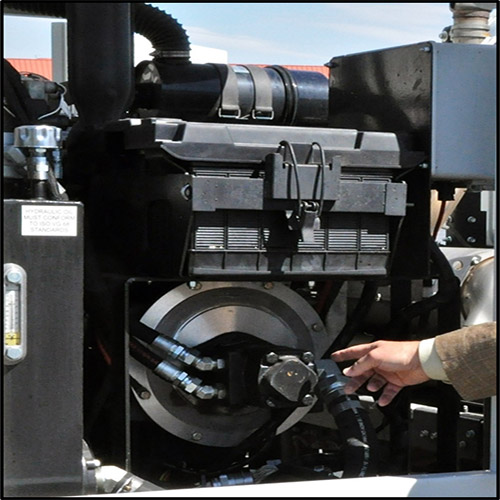

59 HP Kubota turbo-charged diesel engine with high temperature/ low oil pressure auto shutdown. This engine is quiet and fuel efficient.
"Effectively simple" electric-over hydraulic system with built-in hydraulic pressure gauges for ease of service.
Color camera system keeps operator facing forward. Sweeper comes standard with dashboard-mounted 7″ color monitor with right gutter broom & rear backup cameras. Optional hopper dump observation & hopper inside loading view cameras are available.

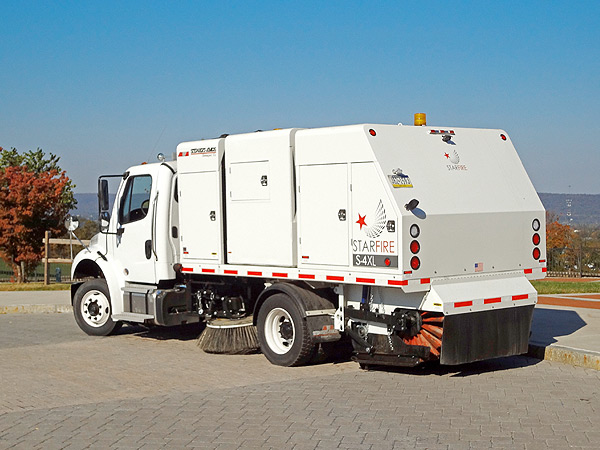

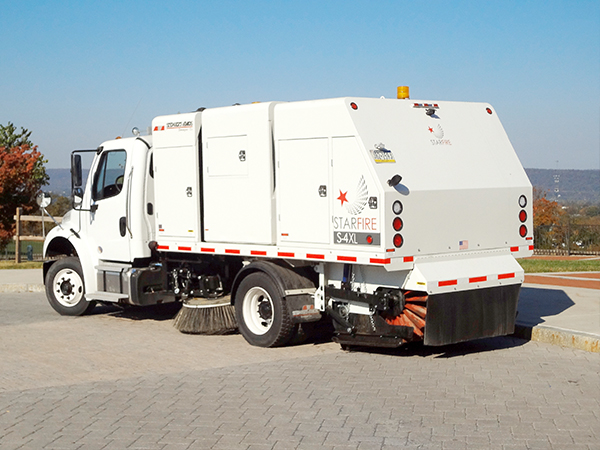

Starfire S-4XXL Shown Above.
| Model Number | Sweeping Path | Chassis GVWR | CDL Required | Hopper Capacity | Hydraulic Power Train | Dump Height* | Gutter Broom Size | Water Capacity | Elevator | Dump Door Reach |
|---|---|---|---|---|---|---|---|---|---|---|
| S-4XXL | 11′ | 33,000 lbs | YES | 4.5 yd3 | Auxiliary Engine | 17″ – 144″ (12′) | 54″ (42″ Opt) | 330 gal | 10 Flights | 44″ |
*chassis dependent
PM-10 Certified – Rule 1186
Learn more about our Starfire S-4XXL Mechanical Broom Sweepers.
For information about the Starfire S-4XXL, click here or call 800.482.2302
