STARFIRE S-5s SWEEPER TRUCK
The S-5s is a full-size mechanical broom street sweeper mounted on a conventional or cab over commercial chassis and manufactured for a hard day of sweeping year-in and year-out. Built with reliability and simplicity, the S-5s features a 5 yd3 debris hopper and an in-cab controlled variable sweeping path for up to an 11′ wide pass. Couple that with a 350-gallon water system and a 12’ hopper dump height and you get the total package in street sweeping.
The environmentally conscious S-5s is SCAQMD PM-10 Rule 1186 Certified.
All Starfire models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.
Key Performance, Productivity & Safety Features
Variable height dumping (up to 12′ high) with 53” hopper door reach easily reaches most dump trucks.
Quad (4) X-style hopper scissor lift ensures exceptional hopper stability when dumping wet, unbalanced, or sticky debris.
Off-set hydraulic elevator drive motor is protected against impacts.
Electrical relays and fuses are protected from the elements in a sealed NEMA 4 enclosure. The wiring is heat stamped with numbers for easy identification.
Vertically-mounted control panel is 6-way adjustable for easy ergonomic viewing. One-touch sweeping allows for operator to preset functions. Brooms raise automatically in reverse.
Main broom channeler (optional) effectively sweeps large quantities or bulky and light debris (leaves/pine straw). Self-adjusting as main broom wears.
Case drains for all the hydraulic motors protect shaft seals from pressure leaks minimizing repairs and replacements.
Spring-balanced, free-floating main and gutter brooms automatically apply correct surface pressure for maximum broom wear life. In-cab gutter broom electric tilt is standard.

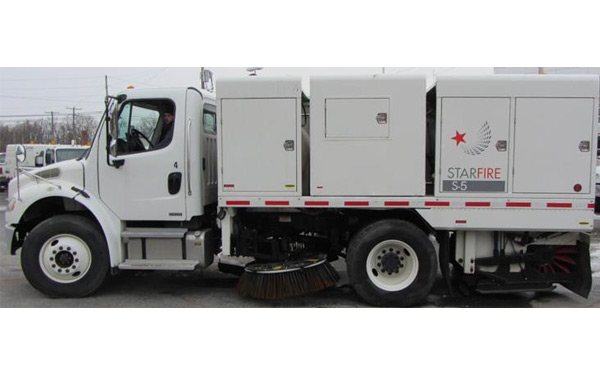

Starfire S-5s Shown Above.
| Model Number | Sweeping Path | Chassis GVWR | CDL Required | Hopper Capacity | Hydraulic Power Train | Dump Height* | Gutter Broom Size | Water Capacity | Elevator | Dump Door Reach |
|---|---|---|---|---|---|---|---|---|---|---|
| S-5s | 11′ (132″) | 33,000 lbs | YES | 5.0 yd3 | PTO | 15″ – 144″ (12′) | 54″ | 350 gal | 10 Flights | 53″ |
| S-5t | 11′ (132″) | 33,000 lbs | YES | 5.0 yd3 | Auxiliary Engine | 15″ – 144″ (12′) | 42″ or 54″ | 350 gal | 10 Flights | 53″ |
*chassis dependent
PM-10 Certified – Rule 1186
Learn more about our Starfire S-5s Mechanical Broom Sweepers.
For information about the Starfire S-5s, click here or call 800.482.2302
