STARFIRE S-6s SWEEPER TRUCK
The S-6s is a heavy duty, full-featured, single engine mechanical broom sweeper that is mounted on a full-size commercial chassis. Manufactured with reliability and simplicity in mind, the S-6s features a large 6 yd3 hopper and variable sweeping path of up to 12′. Combined with a 350 gallon water system and 12’2″ hopper dump height, the
S-6s is ideal for the most-demanding sweeping applications. The environmentally conscious S-6s is SCAQMD PM-10 Rule 1186 Certified.
All Starfire models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.
Key Performance, Productivity & Safety Features
Off-set hydraulic elevator drive motor is protected against shock loading.

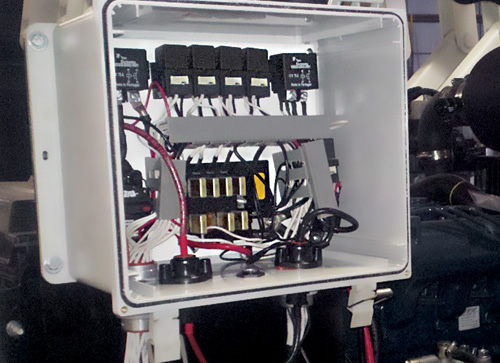

Electrical relays & fuses are protected from the elements in a sealed NEMA 4 enclosure. The wiring is heat stamped with numbers for easy identification.

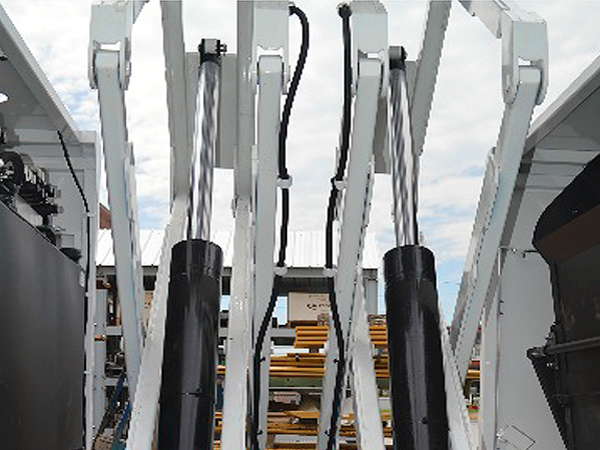

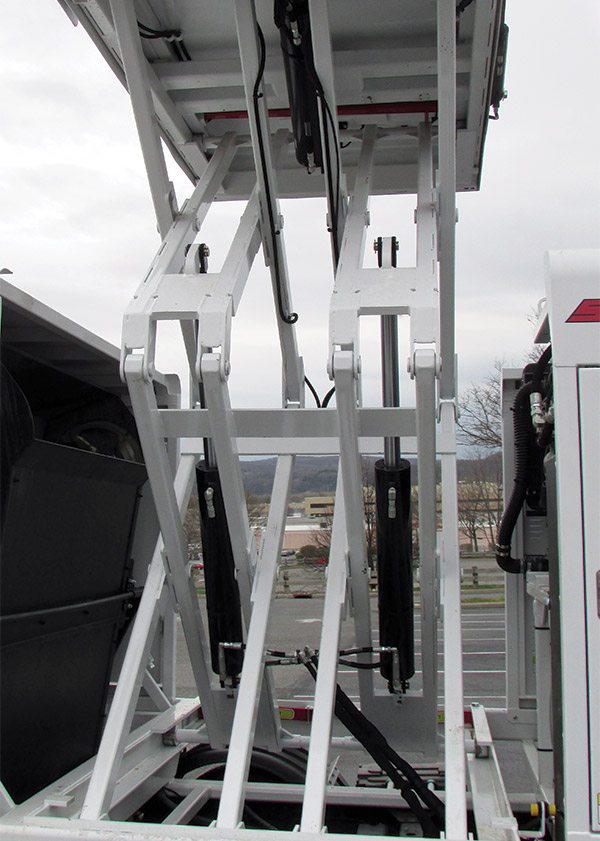

Massive double “X” style lift scissors & 4-corner hopper lift ensure exceptional hopper stability when dumping wet, unbalanced, or sticky debris.

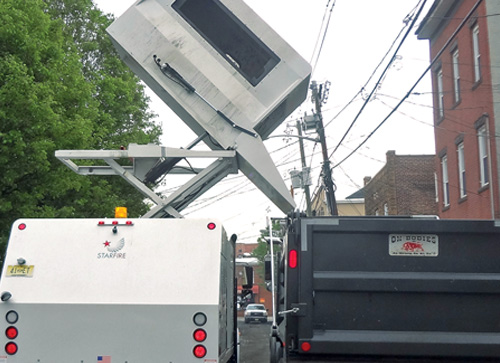

Variable dump height hopper (up to 12' 2" high) with 54" extra-long dump door easily reaches most dump trucks.

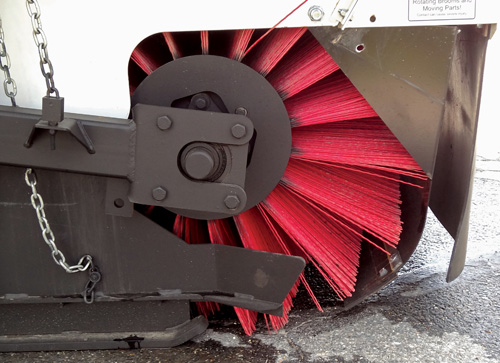

Main broom channeler (optional) effectively sweeps large quantities or bulky & light debris (leaves/pine straw). Self-adjusting as main broom wears.

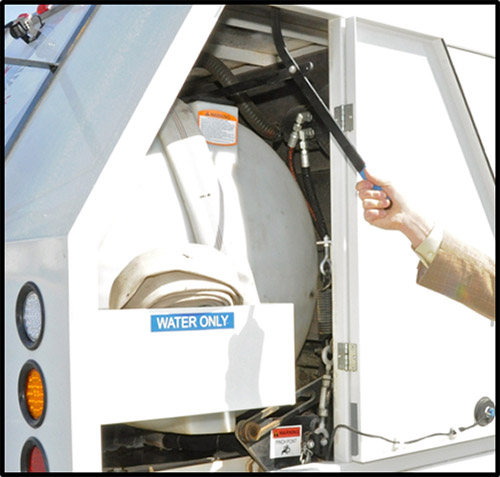

Large 350 gallon polyethylene water tank with 3.6 gpm diaphragm pump & elevator wash-down system come standard. Spray nozzles: 3 per gutter broom, 4 on main broom & 4 on front spray bar.

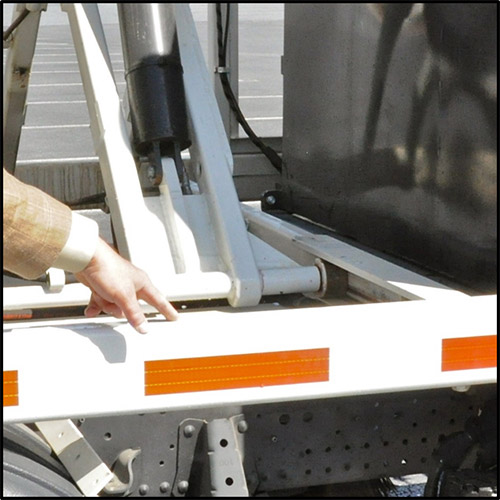

One-piece all steel main frame consists of HD tube and thick liners. This structure allows for rugged & reliable durability.

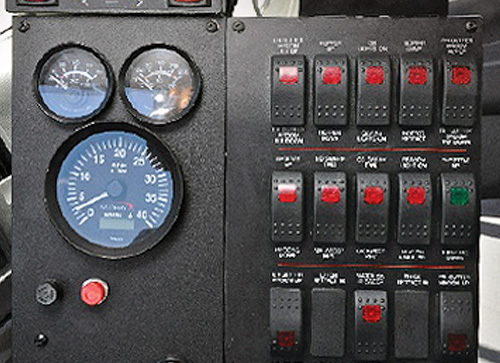

Vertically-mounted control panel is 6-way adjustable for easy & ergonomic viewing. One-touch sweeping allows for operator to preset functions. Brooms raise automatically in reverse.

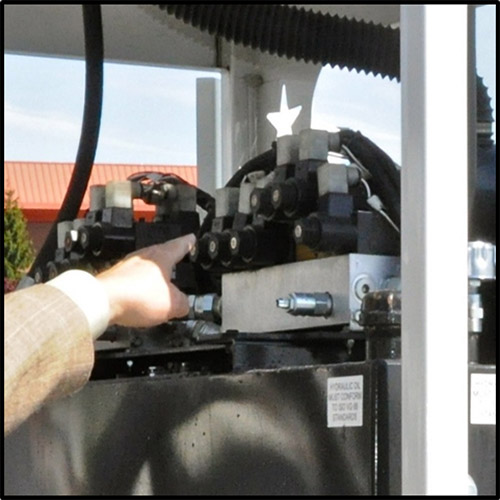

"Effectively simple" electric-over hydraulic system with built-in hydraulic pressure gauges for ease of service.

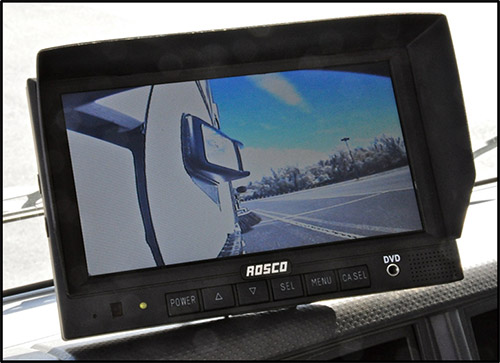

Color camera system keeps operator facing forward. Sweeper comes standard with dashboard-mounted 7″ color monitor with right gutter broom & rear backup cameras. Optional hopper dump observation & hopper inside loading view cameras are available.

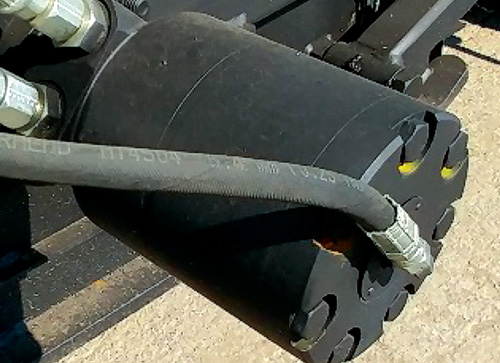

Case drains for all the hydraulic motors protect shaft seals from pressure leaks minimizing repairs & replacements.

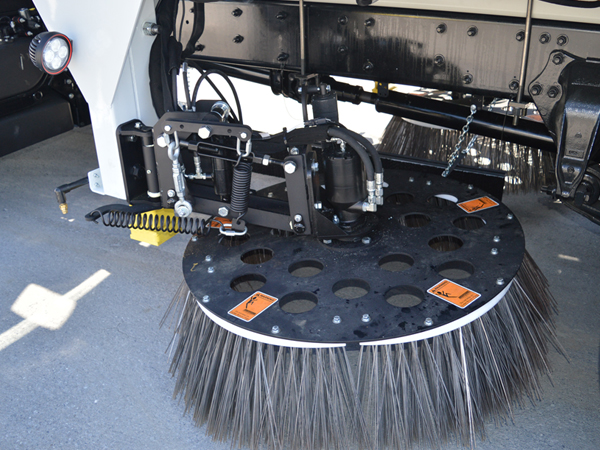

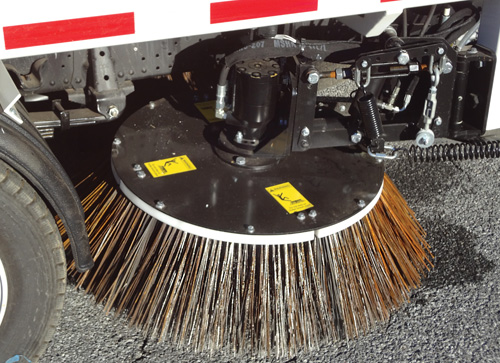

Spring-balanced, free-floating main & gutter brooms automatically apply correct surface pressure for maximum broom wear life. In-cab gutter broom electric tilt is standard.

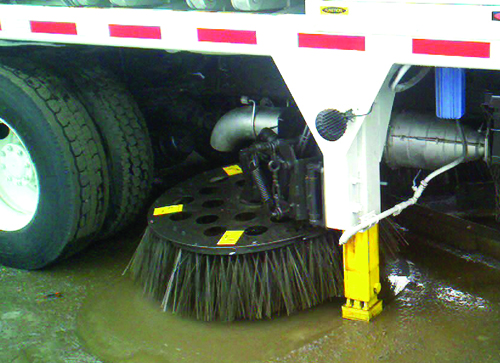

Front stabilizers automatically deploy during hopper dumping to provide added safety & stability when dumping heavy, sticky, or unbalanced loads.

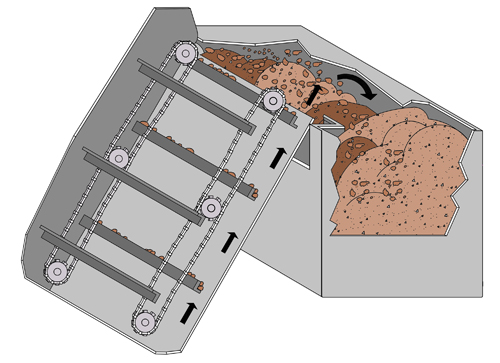

Extended 12-flight elevator maximizes hopper loading by filling from the top down, not from the side. Top loading reduces unused hopper space increasing productivity.

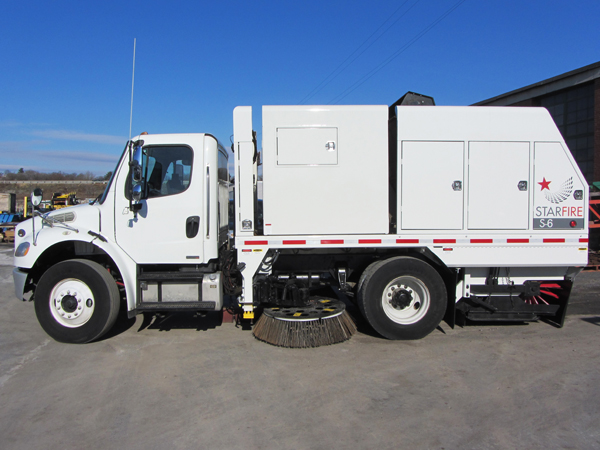

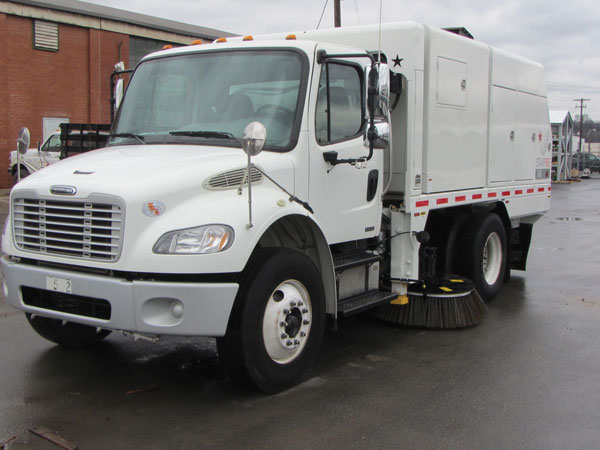

Starfire S-6s Shown Above.
| Model Number | Sweeping Path | Chassis GVWR | CDL Required | Hopper Capacity | Hydraulic Power Train | Dump Height* | Gutter Broom Size | Water Capacity | Elevator | Dump Door Reach |
|---|---|---|---|---|---|---|---|---|---|---|
| S-6s | 10′ (12′ opt) | 33,000 lbs | YES | 6.0 yd3 (top loading) |
PTO | 15″ – 146″ (12′-2″) | 54″ | 350 gal | 12 Flights | 54″ |
| S-6t | 10′ (12′ opt) | 33,000 lbs | YES | 6.0 yd3 (top loading) |
Auxiliary Engine | 15″ – 146″ (12′-2″) | 54″ | 350 gal | 12 Flights | 54″ |
*chassis dependent
PM-10 Certified – Rule 1186
