STARFIRE S-6t SWEEPER TRUCK
The S-6t is a full-size, two engine mechanical broom street sweeper that is mounted on a large CDL chassis. Manufactured with reliability and simplicity in mind, the S-6t features a high-capacity 6 yd3 hopper, the largest available. Its standard features, such as a 350 gallon water system and 12′ 2″ hopper dump height, make the S-6t ideal for the most-demanding sweeping applications.
The environmentally conscious S-6t is SCAQMD PM-10 Rule 1186 Certified.
All Starfire models are equipped with unique features designed to make your sweeping tasks safer, easier and more cost effective.
Key Performance, Productivity & Safety Features
Off-set hydraulic elevator drive motor is protected against shock loading.
Electrical relays & fuses are protected from the elements in a sealed NEMA 4 enclosure. The wiring is heat stamped with numbers for easy identification.
Massive double “X” style lift scissors & 4-corner hopper lift ensure exceptional hopper stability when dumping wet, unbalanced, or sticky debris.
Variable dump height hopper (up to 12' 2" high) with 54" extra-long dump door easily reaches most dump trucks.
Main broom channeler (optional) effectively sweeps large quantities or bulky & light debris (leaves/pine straw). Self-adjusting as main broom wears.
Large 350 gallon polyethylene water tank with 3.6 gpm diaphragm pump & elevator wash-down system come standard. Spray nozzles: 3 per gutter broom, 4 on main broom & 4 on front spray bar.
One-piece all steel main frame consists of HD tube and thick liners. This structure allows for rugged & reliable durability.
"Effectively simple" electric-over hydraulic system with built-in hydraulic pressure gauges for ease of service.
Color camera system keeps operator facing forward. Sweeper comes standard with dashboard-mounted 7″ color monitor with right gutter broom & rear backup cameras. Optional hopper dump observation & hopper inside loading view cameras are available.
Case drains for all the hydraulic motors protect shaft seals from pressure leaks minimizing repairs & replacements.
Spring-balanced, free-floating main & gutter brooms automatically apply correct surface pressure for maximum broom wear life. In-cab gutter broom electric tilt is standard.
Front stabilizers automatically deploy during hopper dumping to provide added safety & stability when dumping heavy, sticky, or unbalanced loads.
Extended 12-flight elevator maximizes hopper loading by filling from the top down, not from the side. Top loading reduces unused hopper space increasing productivity.

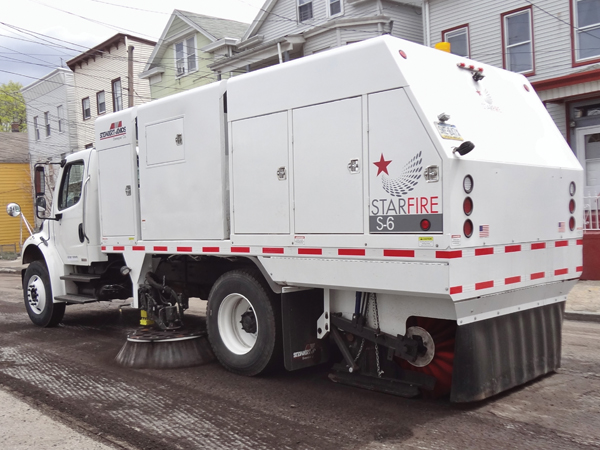

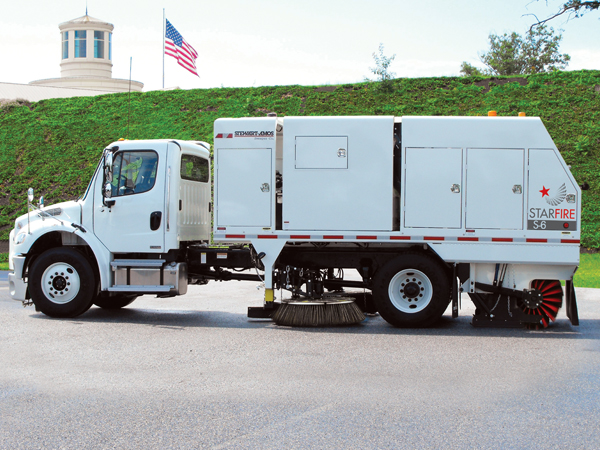

Starfire S-6t Shown Above.
| Model Number | Sweeping Path | Chassis GVWR | CDL Required | Hopper Capacity | Hydraulic Power Train | Dump Height* | Gutter Broom Size | Water Capacity | Elevator | Dump Door Reach |
|---|---|---|---|---|---|---|---|---|---|---|
| S-6t | 10′ (10′ opt) | 33,000 lbs | YES | 6.0 yd3 (top loading) |
Auxiliary Engine | 15″ – 146″ (12′-2″) | 54″ | 350 gal | 12 Flights | 54″ |
| S-6s | 10′ (10′ opt) | 33,000 lbs | YES | 6.0 yd3 (top loading) |
PTO | 15″ – 146″ (12′-2″) | 54″ | 350 gal | 12 Flights | 54″ |
*chassis dependent
PM-10 Certified – Rule 1186
Learn more about our Starfire S-6s Mechanical Broom Sweepers.
For information about the Starfire S-6t, click here or call 800.482.2302
